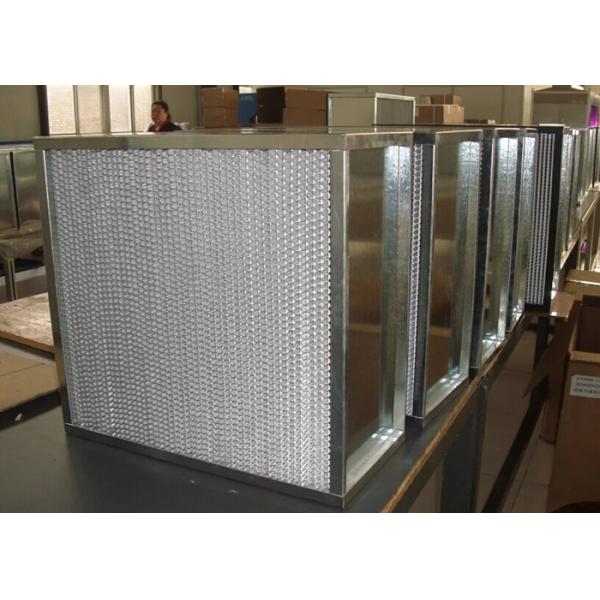

SUS 304 Frame Deep Pleated H13 Filter With Low Pressure Drop

Name: SUS 304 Frame Deep Pleated H13 Filter With Low Pressure Drop
Brand: K-LING
Price: 1 USD

Quality SUS 304 Frame Deep Pleated H13 Filter With Low Pressure Drop for sale

Brand Name : K-LING

Model Number : KEL-HF

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets per month

Delivery Time : 7-15 working days

Packaging Details : Plywood packing

Efficiency : H13 / H14

Frame : SUS 304 frame

Filter Media : Glassfiber paper

Separator : yes

Size : customized

Max. temperature : 80°C

Contact Now

Customized Size Deep Pleated H13 Filter With High Efficiency And Low Pressure Drop

Product Details

Good quality and high performance super fine glass fiber, over-length glass fiber, pp fiber filter paper and so on are used as filter medium and aluminum foil or two-sided offset paper is used as spacer. Many kinds of efficiencies, from medium efficiency (M6~F9),Sub-high efficiency(H10~H12)to high efficiency(H13~H14),are provided to customers for choice. Wide size are available.

Features

1. Ultra-fine glass fiber as filter media.

2. Separator design, high efficiency, low pressure drop,

high dust loading capacity.

3. Applicable to VAV system.

4. Efficiency: 65%(M6),85%(F7),

90%(F8),95%(F9)(EN779)

99.95%@MPPS(H13) (EN1822)

99.995%@MPPS(H14) (EN1822)

Parameter

Model	Width (mm)	Height (mm)	depth (mm)	Nominal air flow and resistance (m3/h&pa)	Efficiency Sodium flame method (%)	Dust collection (g)
KEL1260-630-220	1260	630	220	3000/220	99.99	1800
KEL648-630-220	948	630	220	2200/220	99.99	1400
KEL1220-610-150	1220	610	150	2000/220	99.99	1200
KEL968-484-220	968	484	220	2000/220	99.99	1200
KEL915-610-150	915	610	150	1500/220	99.99	800
KEL726-484-220	726	484	220	1500/220	99.99	750
KEL630-630-220	630	630	220	1500/200	99.99	900
KEL720-760-150	720	760	150	1300/220	99.99	800
KEL820-600-150	820	600	150	1300/220	99.99	750
KEL610-610-150	610	610	150	1000/220	99.99	600
KEL484-484-220	484	484	220	1000/220	99.99	600
KEL600-600-150	600	600	150	1000/220	99.99	600
KEL305-610-150	305	610	150	500/220	99.99	400
KEL350-350-220	350	350	220	500/220	99.99	400
KEL320-320-220	320	320	220	400/220	99.99	350

SUS 304 Frame Deep Pleated H13 Filter With Low Pressure Drop
